The Extension Board of the Can Satellite (“CANVAS”) is an auxiliary circuit board designed to expand system functionality. As the name implies, it enables flexible integration of various sensors and specialized modules according to mission requirements.
Primary Functions of the Extension Board
Integration of User-Defined Sensors or Modules
Supports a wide range of additional components such as barometric pressure sensors, temperature/humidity sensors, radiation detectors, GPS modules, and UV sensors.
Provides physical space for custom equipment installation tailored to specific experimental goals.
The top section of the board features a PROTO area, where users can solder sensors and directly configure circuit layouts.Expansion Interface with the Main Board
Offers multiple signal lines via pin headers, including SPI, I²C, GPIO, and power connections.
Can be interfaced with the main board or sub board for integrated system control.Prototyping Area for Experimental Circuits
Equipped with a dot matrix (prototype area), allowing users to construct custom wiring or test sensor configurations directly on the board.Flexible Mission Design and Reusability
Enables mission-specific customization without altering the main board architecture.
By simply swapping the extension board, different experiments can be conducted, making it ideal for educational use and team-based CanSat competitions.
Extension Board – Configuration Summary

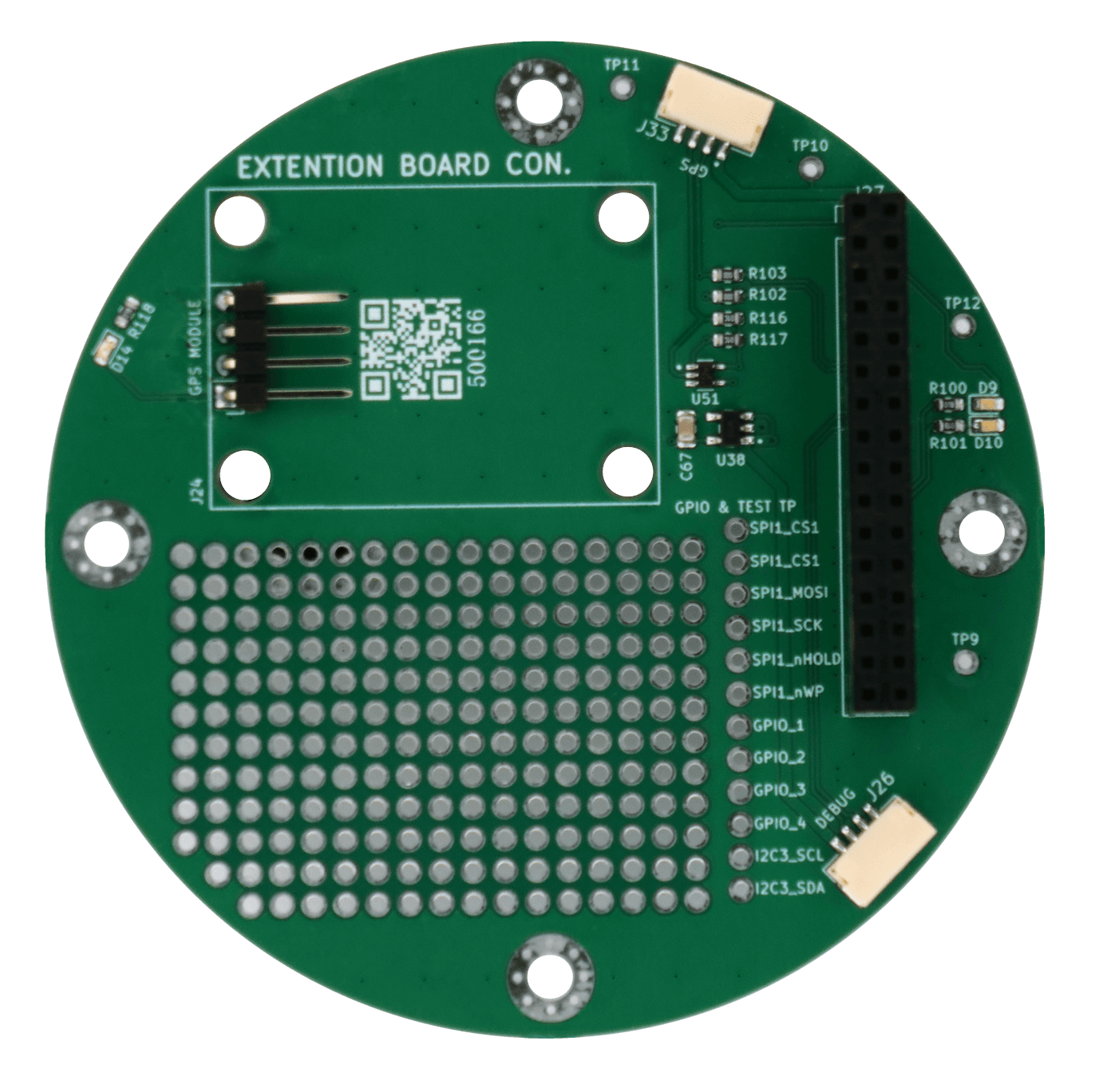

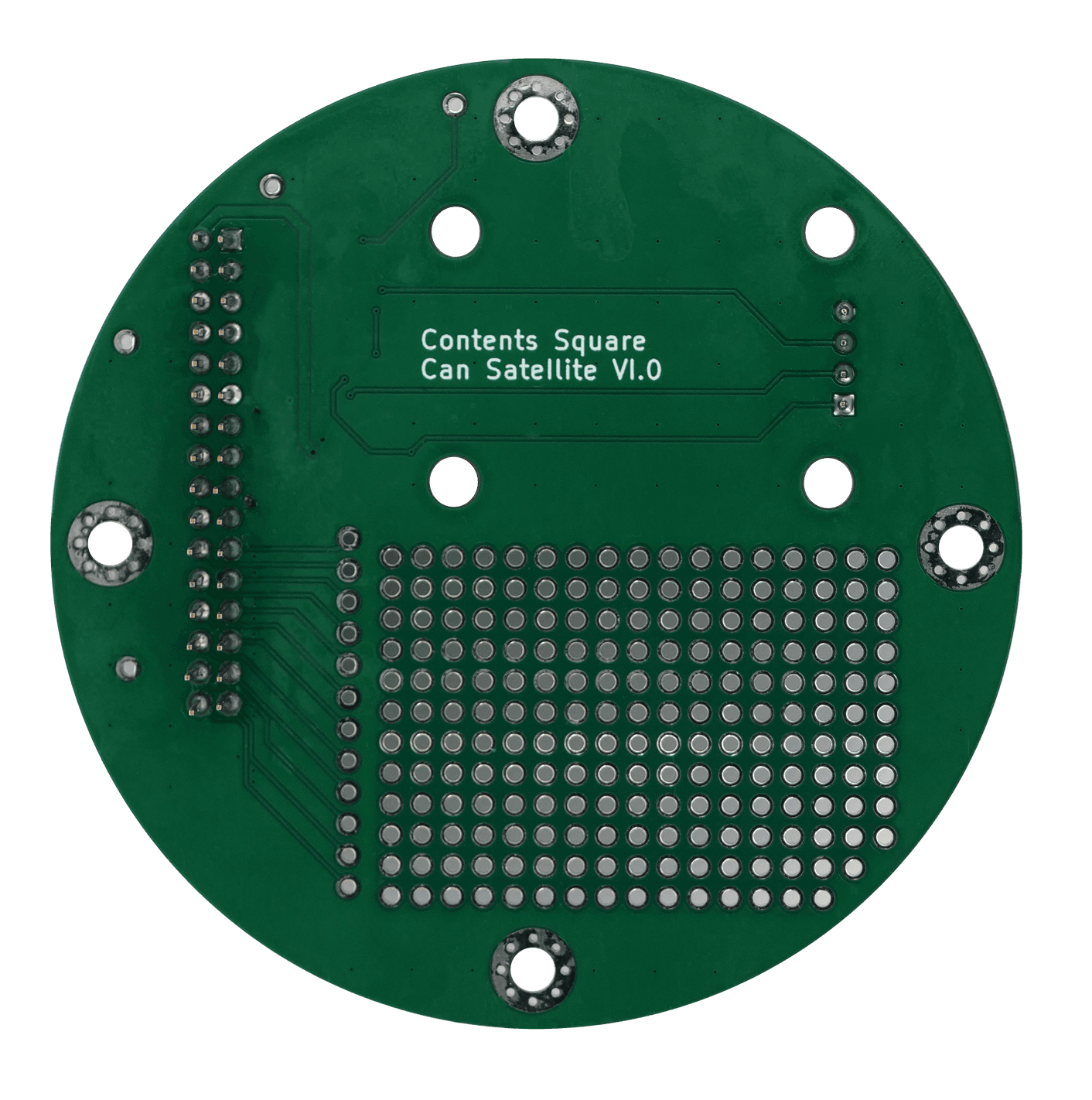

Component | Function | Notes |
|---|---|---|
PROTO Area (Bottom) | Soldering area for custom sensor and circuit layout | Used for prototyping and user-defined components |
Pin Headers (Right) | Interface for SPI, I2C, power, and GPIO signals | Connects to main/sub board for integrated control |
Sensor Mounting Area (Top Left) | Space for small sensors (e.g., barometric sensor) | Designed for modular and flexible installation |
QR/ID Code | Identification and tracking of experimental setups | Useful for equipment management and version control |
Summary
The Extension Board serves as a customizable platform that enhances the flexibility of CanSat experiments.
It allows users to freely mount and program desired sensors, components, and circuits, thereby maximizing the educational value and experimental versatility of the CanSat system.
