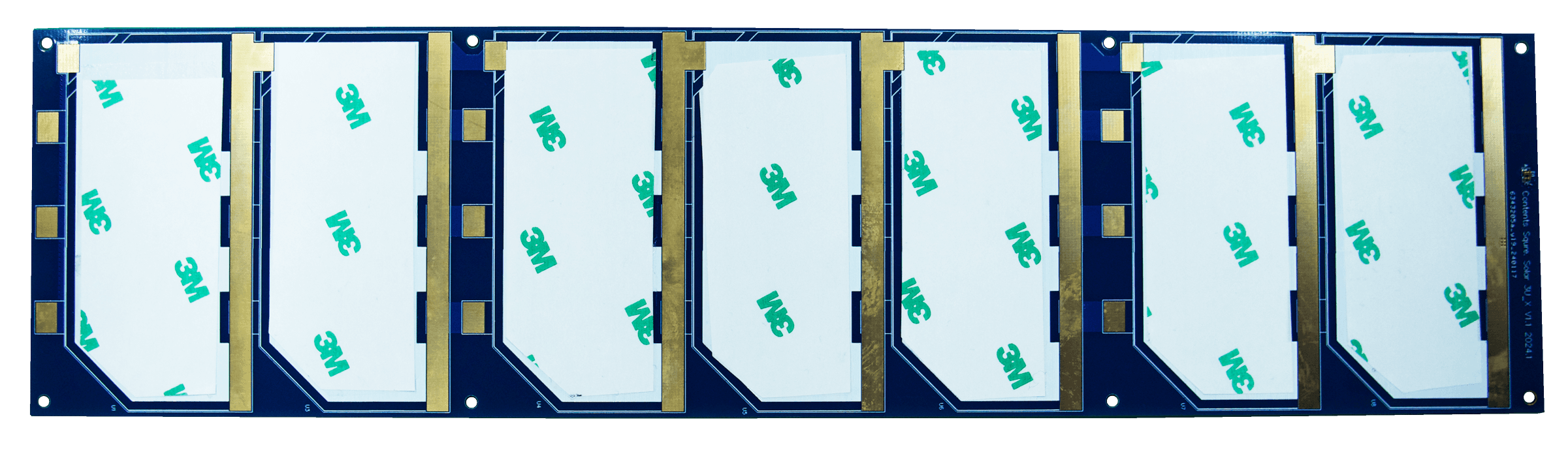

3U Solar Panels Models
The 3U solar panel generates approximately 15 to 18 volts at 500 mA by connecting seven 2.5V solar cells in series.
It is equipped with a temperature sensor for monitoring the board temperature and a light sensor for detecting solar irradiance.
3U Solar Panel Specifications
Solar PCB 3U | |
|---|---|
Solar pannel | 7 Cells 17.5 |
Temperature sensor | I2C Interface |
Sun sensor | Analog Type |
Connector | 7 pin (low profile 1.25mm) |
Tickness | 0.8mm |
ENIG | |
PCB color | Blue, Silk white |
