1U Solar Panels Models
Panel Models | |
|---|---|

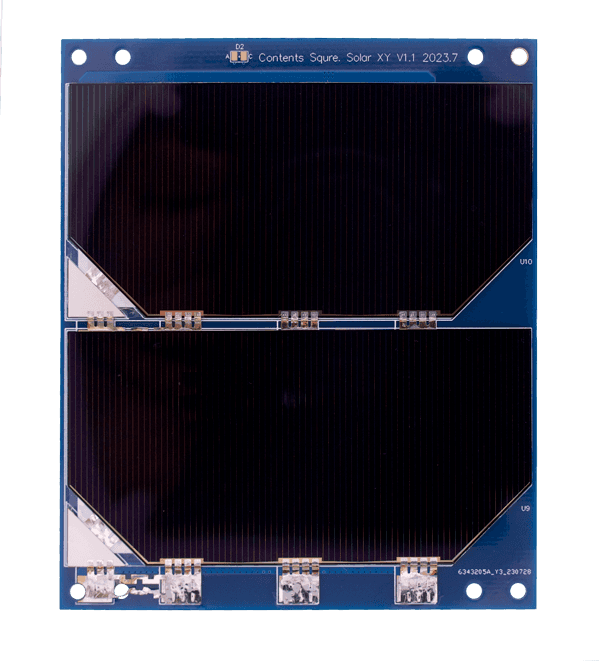

Cube Solar XY 2pcs. SC-3GA-3 Blocking diode Temperature sensor Mass: 35g PCB thickness: 1.6mm |  |

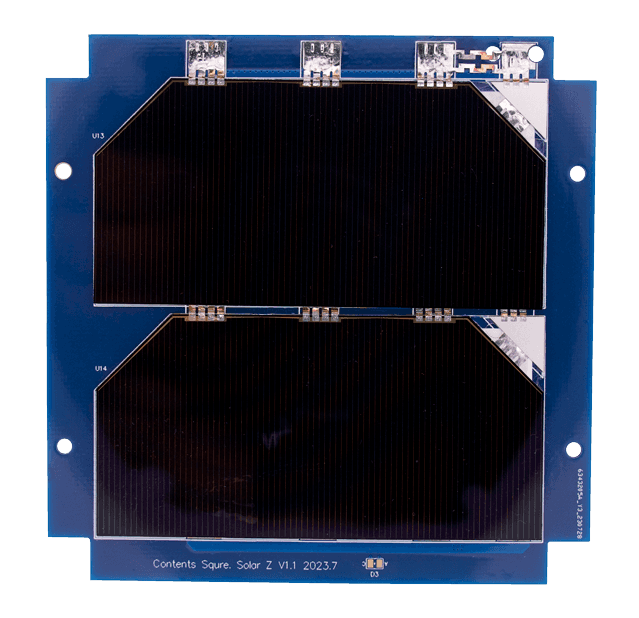

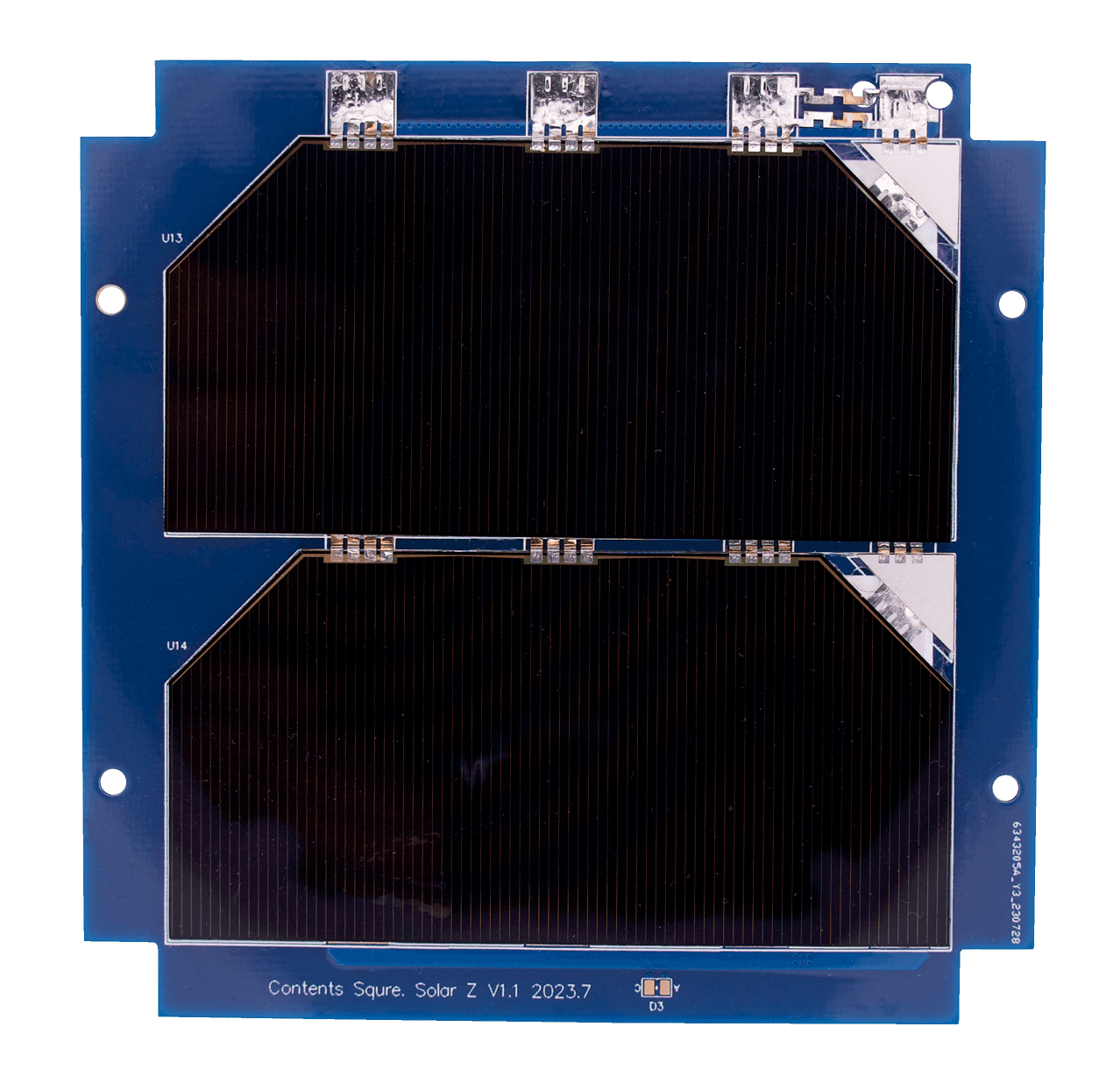

Cube Solar Z 2pcs. SC-3GA-3 Blocking diode Temperature sensor Mass: 35g PCB thickness: 1.6mm |  |
1U Solar Panel Specifications
Parameter | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
Solar Cell string • Voltage • Current • Power • Efficiency | Full sunlight in LEO Optimal voltage Current at optimal voltage Maximum power | 5130 494 1403 28.3 | 30 | 5230 514 1403 30.3 | mV mA mW % |
Course Sun Sensor Current Cosine error | Short current at 1367 W/m² | 930 1.85 | 3.5 | μA º | |
Temperature Sensor • Range • Resolution • Vcc - Current | -40 0.0625 | 3.3 200 | +125 0.5 | °C °C V μA |
Highlighted Features
• CMX 100 cover glass – 100 μm
• Silver-plated kovar interconnectors - 3 parallel interconnectors per string
• Operational temperature: -40°C to +85°C
